Pixet software

The multi-platform software allows device control and setup. It enables users to configure the detector, as well as obtain and analyse data. Users can download the program on our website; it is also delivered on a hard drive with each detector.

Request product

Funguje

(většinou)

PIXet_Pro (API/GUI) Download Mirrors

PIXet Manual

Product description

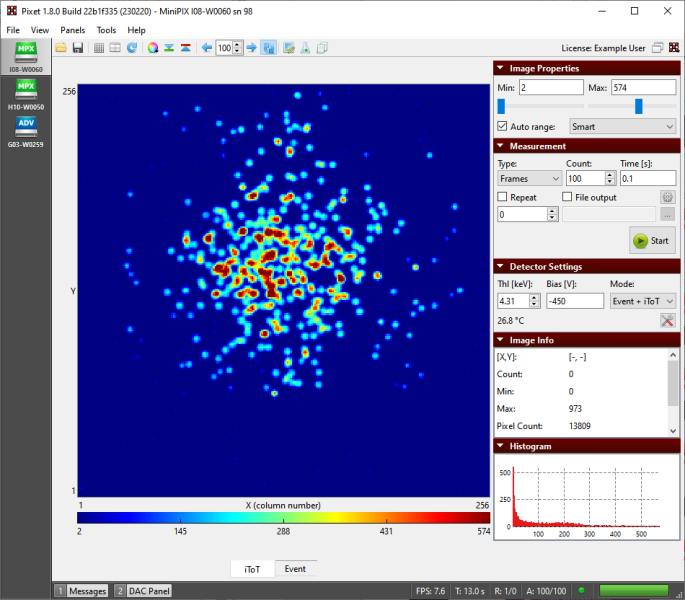

The all-purpose imaging software
The PIXet Pro software package was developed for acquisition control of Medipix family chips. It supports most of the available Medipix based devices (Timepix, Timepix2, Timepix3, Medipix3) and commonly used readout interfaces MiniPIX, AdvaPIX, WidePIX etc.
The software offers graphical user interface as well as application programming interface, which makes it a flexible tool for a multitude of applications.
Pixet provides many tools for optimization of detector parameters, data processing, image corrections and scripting. It allows integration of user plug-in modules prepared in C++. Many of such plugins already exists. The program is written in C++ and uses multi-platform Qt libraries.
Pixet is used for:
• Device control and setup
• Measuring and reading data from Medipix detectors
• Visualizing said data
• Data retrieval
• Detector configuration
• Flat-field correction
• Calibration of measured data
• Beam hardening correction
• Cluster Analysis.
All commonly used operating systems (Windows, MacOS and Linux) support Pixet. Find out more about technical parameters and installation

Space

Space weather monitoring

Particle tracking

Protecting ISS

Moon radiation monitoring

Implemented on the International Space Station, NASA Artemis program, the Gateway Lunar Station or numerous satellites, our single particle detectors are revolutionizing space weather monitoring and radiation protection. Advacam's cameras ensure safer and more efficient missions. Boasting a compact size and low-power consumption, these detectors excel in particle identification, energy measurement, and even determining the direction from which particles originate.

We have many references of implementing our cameras.

Discover all possibilities of Advacam cameras from real life case studies. Contact us and request our references.

Request references
